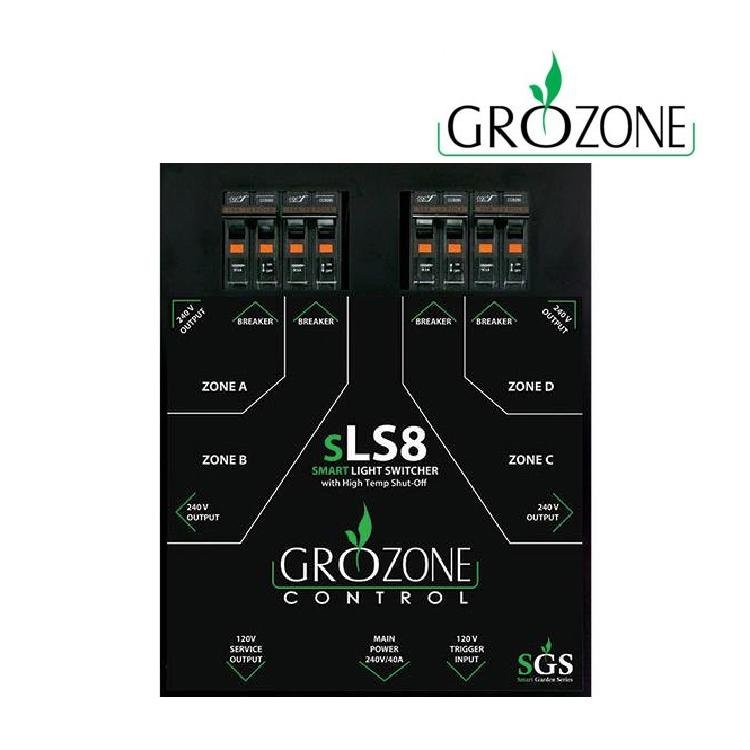

- The LS8 LIGHT SWITCHER is specifically designed for operation of high intensity discharge (HID) lighting systems.
- The system can handle up to a maximum of eight (8) 1000W HID metal halide (MH) or high pressure sodium (HPS) grow lights.
- The activation of the internal power switches (relays) is performed through 120V trigger inputs.
- The LS8 can activate 8 lights with one single trigger input, or two 4-light zones using two trigger inputs.
- LS8 2 trigger inputs on special order only
- This light switcher provides up to 40A of capacity on a standard 240V circuit.
- There is a 120V service outlet (max 10A); this is intended for use of a ventilation fan, light movers, timers or any other accessory.
- The LS8 is built with only the highest quality components and will provide you with years of trouble free performance.
LS8 Light Switcher COMMON SPECIFICATIONS
• LS8 Light Switcher receptacles: NEMA 6-15 (240V 15A), 4 duplex receptacles for 8 lights,
4 lights on each side.
• Service receptacle: NEMA 5-15 (120V 10A).
• Metal enclosure dimensions: 14 in. X 10.5 in. X 2.5 in. (H x W x D)
• Circuit breakers: total of 4 double breakers (240V, 15A) 1 double breaker
for two lights. Breakers meet UL 489.
• Input power requirement: 240V 40A 60Hz.
LS8 Light Switcher INSTALLATION GUIDE
1. Unscrew the 4 cover screws.
2. Secure the LS8/sLS8 to the wall using the included hardware (#8 wood screws
in keyhole shaped mounting holes).
3. Use the correct size wire for your application. Please check local electrical
codes for wire size requirements. Carefully strip the 2 power wires
approximately 1’’. Pass the stripped and copper wires through the largest
strain relief located on bottom wall of enclosure.
Important Notice
2 POWER CONNECTOR models are available - follow instructions accordingly.
Gray Spring Terminal (shown below): insert small flat screwdriver at 45° into
square hole, pry tool downward to open contact, insert appropriate wire then
release tool. Tighten up wire connectors (strain relief).
Black Screw Terminal (not shown): loosen terminal screws, insert appropriate
wire under screw plate then tighten up screws and wire connectors
(strain relief).
Hook up 240V wires as follows:
• Black wire to JP5 connector L1
• Red or White wire to the
JP5 connector L2
• Copper wire to GROUND LOG located
on bottom wall of enclosure, next to
metallic wire connectors.
