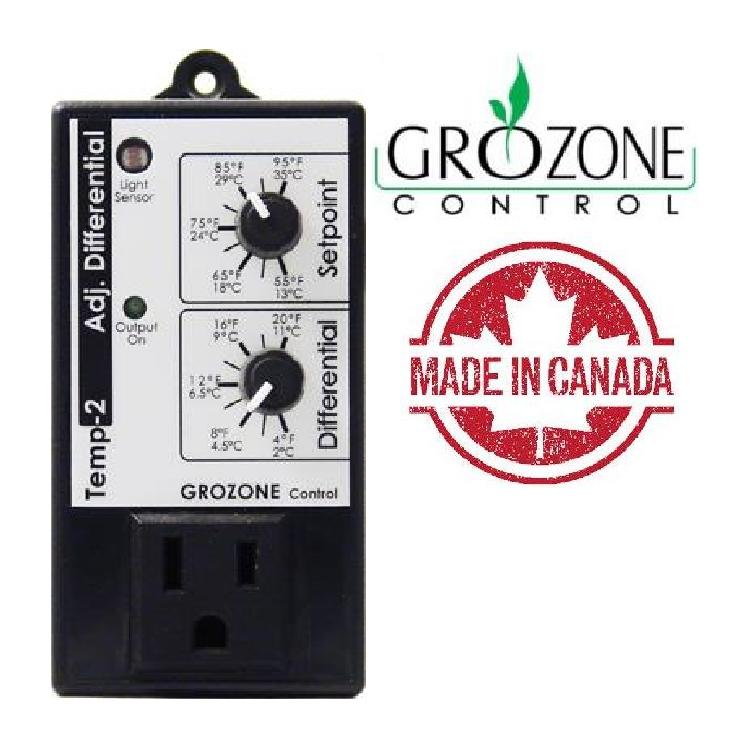

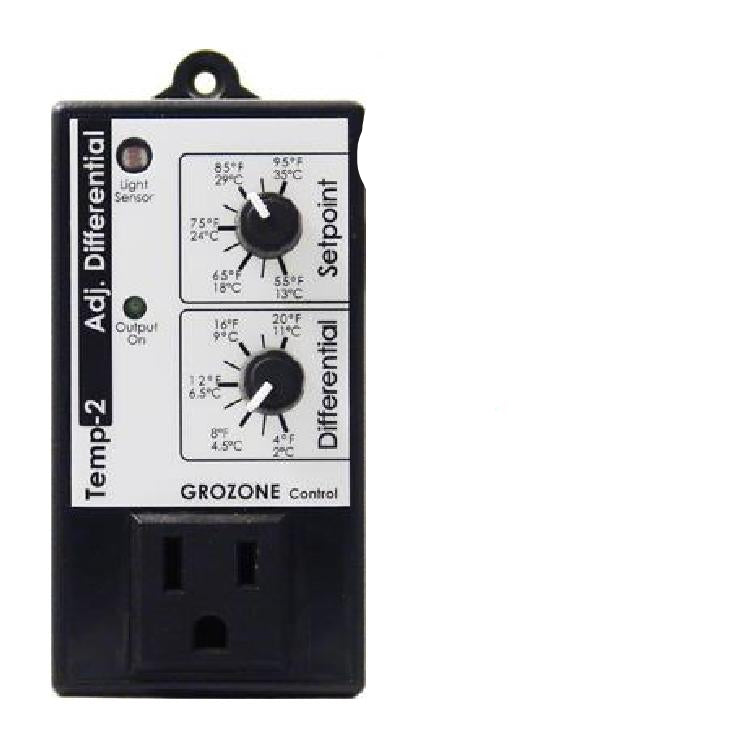

Grozone TP2 Adjustable Differential Thermostat

TP2 Adjustable Differential Thermostat Temperature controller with adjustable differential

• Heating or cooling
• 55°F - 95°F (13°C - 35°C)
• Differential 4°F - 20°F (2°C - 11°C)
• Maximum 120V load : 15A (resistive, ballast), 10A (tungsten), 1/2HP (motor, pump

Operation and Specifications

Temperature Setpoint between 55°F and 95°F / 13°C to 35°C.
Adjustable Differential from 4°F to 20°F / 2°C to 11°C.
Example: In Cooling mode, Setpoint is 75°F & Differential is 10°F (± 5°F).
The output will turn ON at 80°F and OFF at 70°F.
Internal Operation in Fahrenheit.
6-ft temperature probe works from 32°F to 212°F (0°C to 100°C).
Electrical Specifications: See the rating label on your product.

Included with the Grozone TP2:

• One plug-in type module
• One user guide
• One screw kit
